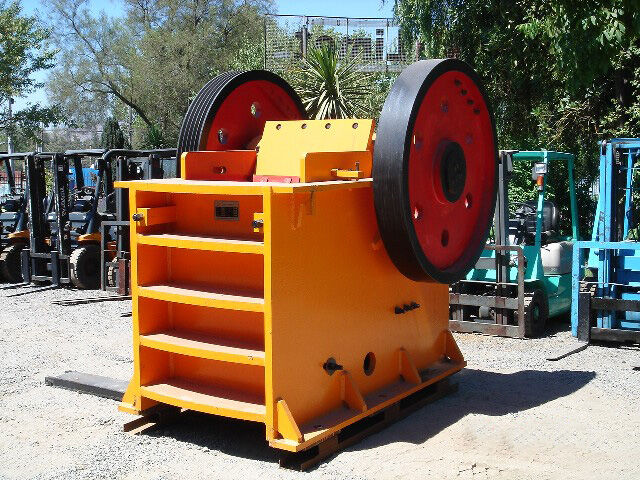

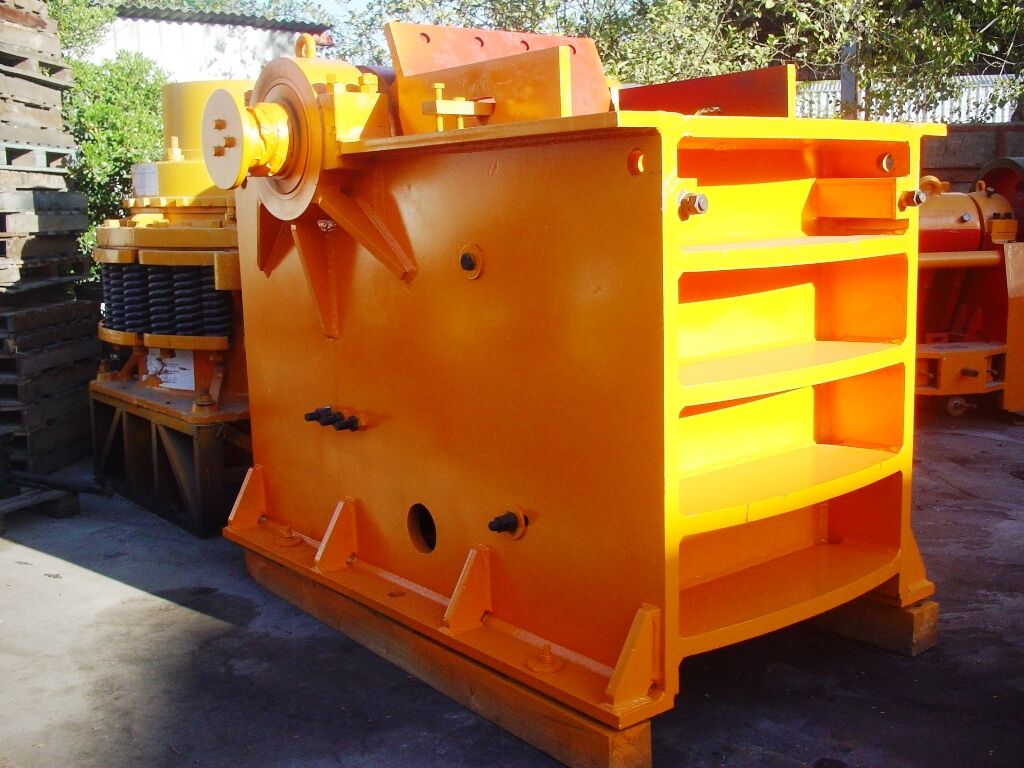

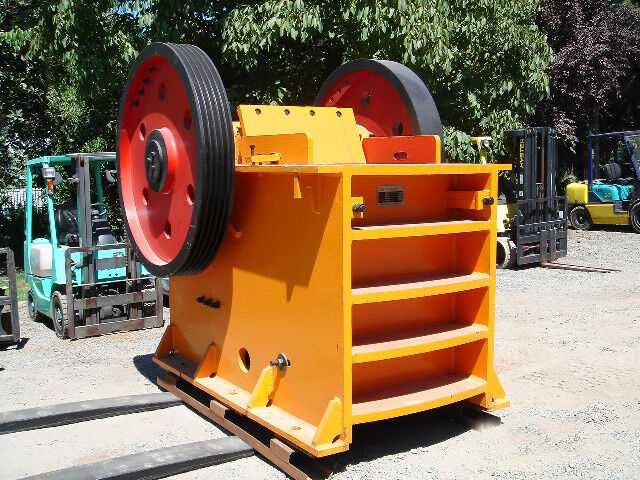

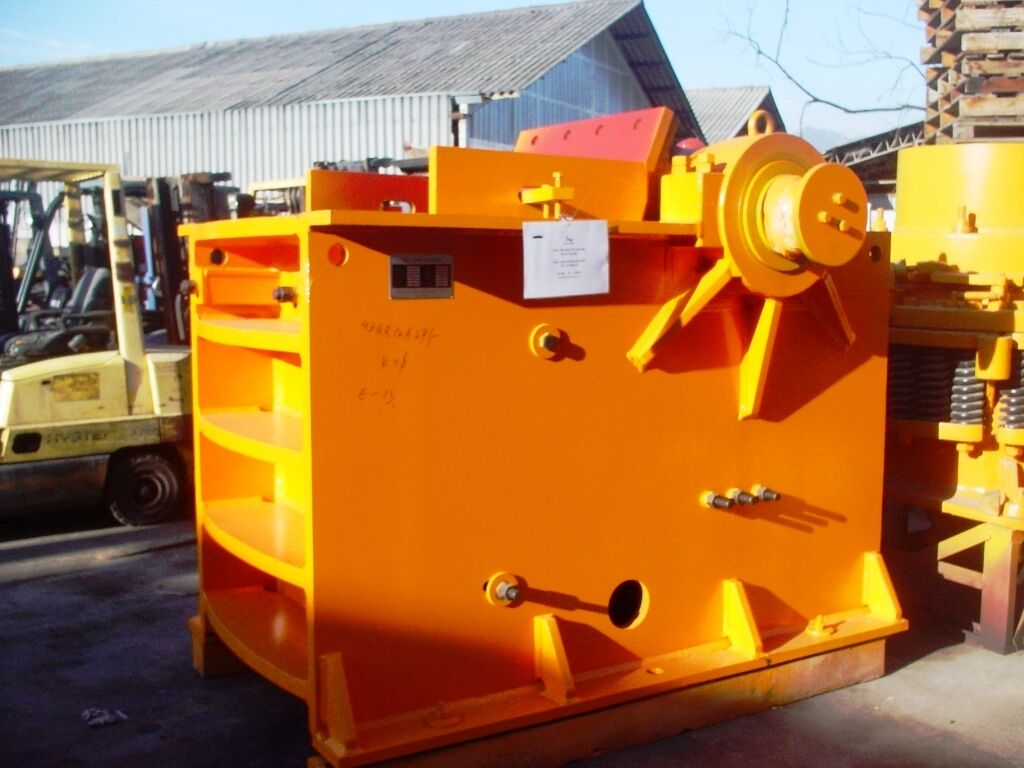

PE Jaw Crusher

Features

  • Deep crushing cavity, high capacity

  • High crushing ratio, homogeneous particle size

  • Gasket adjusting device is reliable and convenient, large adjusting range and is more flexible

  • Lubrication system is safe, parts are easy to change, it's easy to maintain

  • Simple structure, low cost

  • Energy saving: single machine saves 15%-30%, the whole system doubles

  • Wide adjustment range of discharging port meets different customers' demands

  • Low noise and little dust

Specifications


Model

Opening Size

(mm)

Max. Feeding Size

(mm)

Discharge Size

(mm)

Capacity

(t/h)

Power

(kw)

Dimension

(mm)

PE-250×400250×40020020-505-20151430×1310×1340
PE-400×600400 ×60035040-10015-6030-371700×1732×1653
PE-500×750500×75042550-10040-11045-552035×1921×2000
PE-600×900600 ×90048065-16090-18055-752290×2206×2370
PE-750×1060750 ×106063080-140110-32090-1102655×2302×3110
PE-900×1200900×120075095-180220-4501323475×2826×3025
PE-1000×12001000×120085095-190230-5001323800×3166×3045
PE-1200×15001200×15001020150-300400-8002204930×3148×3703
PE-1500×18001500×18001200220-350450-10003555630×3210×4120
PEX-150×250150×25012510-401-35.5896×745×935
PEX-150×750150×75012518-485-16151200×1500×1200
PEX-250×750250×75021025-6015-3022-301667×1545×1020
PEX-250×1000250×100021025-6015-5030-371550×1964×1380
PEX-250×12001200×25021025-6020-6037-452192×1900×1950
