Metso GP100/GP100S Wear Parts
‹
›
‹
›

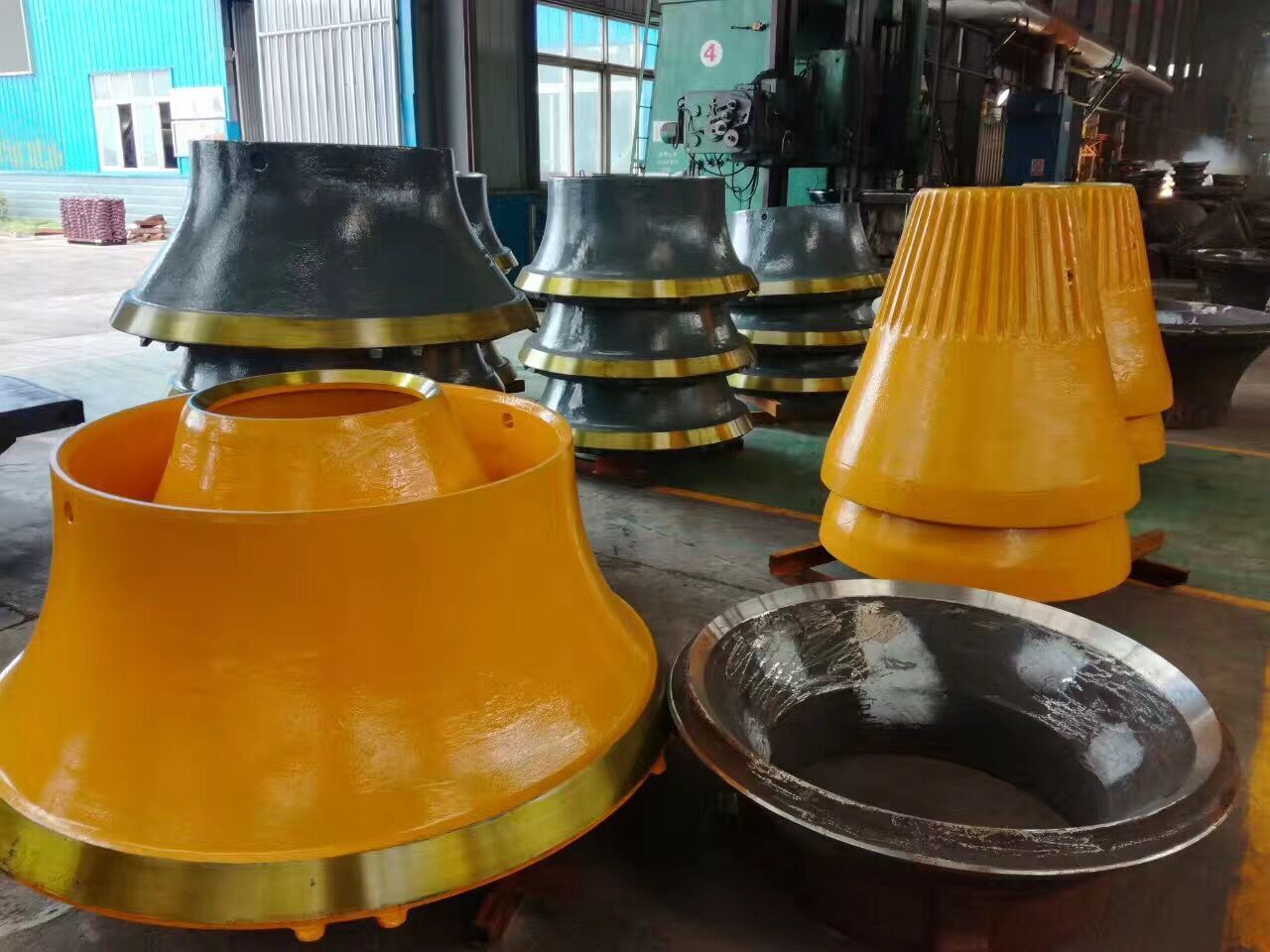

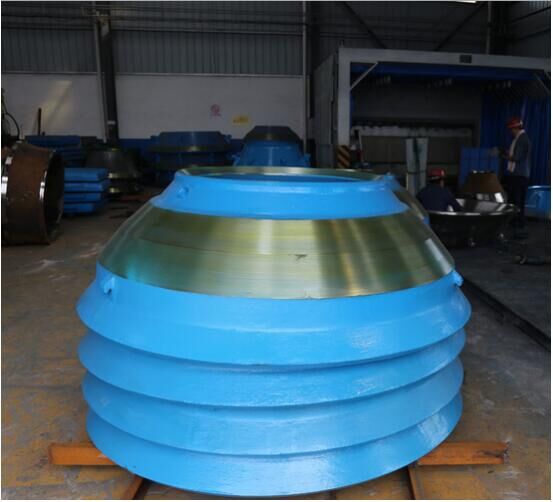

Bowl Liner & Mantle are the mainly wear-resistant parts for metso GP100 cone crusher.WHITE LAI Offers the Metso® Bowl Liner & Mantle，Perfect alternative to Metso original accessories.
WHITE LAI Bowl Liner & Mantle is manufactured with super high manganese steel, therefore it has a service life 50~100% longer than those made of traditional high manganese steel. The special processing techniques ensure that our Bowl Liner & Mantle has leading performance:
1)Using cold processing hardening technology, the hardness is improved.
2)Water toughening technology to avoid making the performance poor during the process of natural phase change.
WHITE LAI Bowl Liner & Mantle is manufactured with super high manganese steel, therefore it has a service life 50~100% longer than those made of traditional high manganese steel. The special processing techniques ensure that our Bowl Liner & Mantle has leading performance:
1)Using cold processing hardening technology, the hardness is improved.
2)Water toughening technology to avoid making the performance poor during the process of natural phase change.
| Part Number | Description | Crusher Type | Weight(KG) |
| 171551 | BRNG BUSHING E20 G158@ | GP100 | 52.000 |
| 171564 | BRNG BUSHING E25 G158@ | GP100 | 52.000 |
| 171565 | BRNG BUSHING E16 G158@ | GP100 | 52.000 |
| 285143 | HEAD GP100@ | GP100 | 471.130 |
| 285150 | MAIN SHAFT GP100 | GP100 | 490.000 |
| 285166 | SLIDE RING GP100 | GP100 | 30.000 |
| 285176 | NUT TR240X12-8H RIGHT HANDED | GP100 | 24.010 |
| 285184 | SLIP RING G158@ | GP100 | 100.000 |
| 285968 | CONCAVE PROTECTION GP100EF, 285968@ | GP100 | 55.000 |
| 386960 | COVER G158@ | GP100 | 65.000 |
| 386979 | PROTECTION PLATE G158@ | GP100 | 20.000 |
| 416086 | CHECK VALVE RHD-12 S G10,14@ | GP100 | 0.210 |
| 418312 | PLATE RUBBER G800@ | GP100 | 1.000 |
| 418313 | PLATE RUBBER G800@ | GP100 | 6.000 |
| 418460 | SEAL G158 418460@ | GP100 | 5.000 |
| 418481 | PROTECTION BUSHING G158@ | GP100 | 16.000 |
| 418501 | SCREW M24X280-8.8 498501 G49@ | GP100 | 1.100 |
| 418919 | BUSHING GP100/100S 110/85,2X27,5@ | GP100 | 0.840 |
| 497701 | SPACER RING GP100EF@ | GP100 | 1.400 |
| 801503 | HYDR HOSE 5772-20-10/SAE100R2T-10/57H4-@ | GP100 | 0.000 |
| 911915 | PRESSURE SEALING GP100@ | GP100 | 46.000 |
| 912122 | LUBRICAT&SET DEV 230V GP100/GP100S W/O @ | GP100 | 400.000 |
| 912544 | PRESSURE ACCUMULATOR INST 10 L | GP100 | 57.000 |
| 916186 | MAIN SHAFT ASSY GP100@ | GP100 | 1,025.000 |
| 916906 | COVER GP11F/GP11M@ | GP100 | 146.000 |
| 917291 | SHIM PLATE | GP100 | 0.050 |
| 919803 | COVER G800 SRJ-919803 | GP100 | 92.000 |
| 919807 | PISTON BOTTOM G800SRJ 919807 | GP100 | 20.000 |
| 919881 | LOWER FRAME ASSEMBLY GP100 | GP100 | 2,760.000 |
| 927182 | FRAME UPR GP100 | GP100 | 988.070 |
| 928604 | BRACKET | GP100 | 1,710.000 |
| 928619 | FRAME | GP100 | 1,355.000 |
| 928647 | LEVER | GP100 | 95.000 |
| 933176 | MOTOR SUPPORT ASSY GP100/GP100S@ | GP100 | 270.300 |
| 933743 | MEASURING TOOL GP100 G49-G158 | GP100 | 4.000 |
| 941233 | SEAL GP100/GP100S | GP100 | 1.100 |
| 941532 | THRUST BRNG GP100 & GP100S@ | GP100 | 34.000 |
| 946557 | CYL BUSHING GP100@ | GP100 | 58.770 |
| 947611 | MOTOR SUPPORT ASSEMBLY GP100/100S | GP100 | 283.200 |
| 952431 | SLIP RING GP100 | GP100 | 102.000 |
| 952763 | ADAPTER PRESSURE SEALING – GP100/100S | GP100 | 0.100 |
| 403402105930 | O-RING JISB2401-G150-149.30X5.70@ | GP100 | 0.020 |
| 403402106060 | O-RING SMS1586-219.30X5.70-NBR90@ | GP100 | 0.010 |
| 404101573000 | CIRCLIP DIN472-320X6@ | GP100 | 0.700 |
| 404103672400 | CAP SCRW HEXSCKTHD ISO4762-M12X160-8.8-@ | GP100 | 0.140 |
| 404405693635 | PARALLEL KEY DIN6885-AB32X18X65 | GP100 | 0.290 |
| 404506378310 | HOSE LOS5-2UU16X2800@ | GP100 | 1.800 |
| 404508341020 | HOSE LOS5-4KK31,5X2300@ | GP100 | 7.900 |
| 405302055000 | ROLLER BRNG NU 218 ECP@ | GP100 | 2.350 |
| 405501260430 | V-BELT SET ISO4184-6XSPB 2500@ | GP100 | 3.520 |
| 405501260460 | V-BELT SET ISO4184-6XSPB 3150@ | GP100 | 3.820 |
| 406202557365 | TAPERED SLEEVE 3525X65, 029J0065@ | GP100 | 3.800 |
| 406202557385 | TAPERED SLEEVE 3525X85, 029J0085@ | GP100 | 3.800 |
| 406203016993 | HYDRAULIC PUMP P2C1613F1C5A@ | GP100 | 9.850 |
| 406203455500 | CONNECTION 148801(PSS 20/16) | GP100 | 0.160 |
| 406302285800 | SEAL 300X330X22 N300-102 | GP100 | 0.300 |
| 406303279879 | V-BELT PULLEY SPB 355/6, 11135506S@ | GP100 | 32.300 |
| 406303279919 | V-BELT PULLEY 400X6SPB-TL(3525) | GP100 | 32.600 |
| 704002859970 | PARALLEL PIN ISO2338-12M6X28-ST-UNPLTD@ | GP100 | 0.025 |
| 704209440000 | CUP SPRING DIN2093-A63@ | GP100 | 0.060 |
| 704500230000 | WASHER LOCK DIN7980-12-A3A@ | GP100 | 0.002 |
| 704505054600 | HYDR HOSE LOS 5-1 AA 10X1050@ | GP100 | 0.200 |
| 704602303500 | PLUG PLASTIC NA0204A@ | GP100 | 0.001 |
| 705302980000 | ROLLER BRNG 30218 J2@ | GP100 | 2.550 |
| 705303970000 | ROCKER BRNG GE 220 ES-2RS/C3@ | GP100 | 35.500 |
| 706201202100 | COUPLING GE191 ER.69019@ | GP100 | 0.210 |
| 706203021400 | SEAL P9097000111@ | GP100 | 0.030 |
| 706203455000 | 0UBE NIPPLE 765801(PUS20R) | GP100 | 0.150 |
| 706303279830 | V-BELT PULLEY 280X5SPC-TL(3525) | GP100 | 34.100 |
| 707301583670 | FLOAT SW ALM2-MS-L160-SV L1=110NO@ | GP100 | 1.000 |
| 708801205000 | GREASE RETINAX G@ | GP100 | 0.000 |
| 804401280000 | CNNCTN DIN2353-DS 20-B-ST-GT@ | GP100 | 0.253 |
| 814317178300 | CONCAVE MF@ | GP100 | 420.780 |
| 814317183600 | CONCAVE F@ | GP100 | 348.390 |
| 814318865500 | CONCAVE M@ | GP100 | 392.150 |
| 814328537700 | CONCAVE C@ | GP100 | 356.440 |
| 814328537800 | MANTLE F/MF/M/C@ | GP100 | 256.820 |
| 814329529300 | CONCAVE EF@ | GP100 | 266.760 |
| 814390490400 | MANTLE EF@ | GP100 | 271.150 |
| 949617144700 | HEAD GP100S@ | GP100 | 560.000 |
| 949617145000 | LOW FRAME GP100/GP100S@ | GP100 | 1,790.000 |
| 949617145100 | CNTRSHFT ASSY GP100/S@ | GP100 | 136.000 |
| 949617145400 | ECCENTRIC SHAFT G800-SERIES 171454@ | GP100 | 110.000 |
| 949628505000 | MAIN SHAFT G258-SERIES 285050@ | GP100 | 660.000 |
| 949628505600 | SETTING PISTON GP100/GP100S@ | GP100 | 121.000 |
| 949628505700 | CNTRSHFT G800-SERIES 285057@ | GP100 | 32.000 |
| 949628505800 | CASE G800-SERIES@ | GP100 | 76.850 |
| 949628505900 | HUB GP100S@ | GP100 | 105.000 |
| 949628506200 | FRAME BUSHING G800-SARJA 285062@ | GP100 | 55.000 |
| 949628506300 | RING G800-SERIES 285063@ | GP100 | 10.000 |
| 949628506400 | SUPPORT BUSHING G800-SARJA 285064@ | GP100 | 2.500 |
| 949631229100 | MAIN SHAFT ASSY SPARE PART VERSION GP10@ | GP100 | 956.000 |
| 949638681800 | SEAL 220/280X20 G800-SARJA 386818@ | GP100 | 0.500 |
| 949638682800 | PRESSURE PLATE GP100 & GP100S | GP100 | 11.500 |
| 949638682930 | DRIVE GEAR PAIR G800-SARJA 386829+38683@ | GP100 | 75.000 |
| 949638683200 | BRNG HOUSING COVER G800-SERIAL 386832@ | GP100 | 3.500 |
| 949638684500 | RING G800-SERIES 386845@ | GP100 | 2.500 |
| 949638685400 | PROTECTION PLATE G800-SERIES 386854@ | GP100 | 16.500 |
| 949638685500 | PROTECTION PLATE G800-SERIES 386855@ | GP100 | 16.500 |
| 949640519400 | PUSHING PLATE G10-SERIES 405194@ | GP100 | 0.760 |
| 949641826900 | BUSHING G800-SERIES 110/85X39 418269@ | GP100 | 1.110 |
| 949641827000 | BUSHING G800-SERIES 110/85X27 418270@ | GP100 | 0.780 |
| 949641827300 | GEAR RACK G800-SERIE 418273@ | GP100 | 0.200 |
| 949641828500 | SPACER RING GP100F-C & GP100S; ST52-3@ | GP100 | 1.640 |
| 949641830000 | PISTON GUIDE G800-SERIE 418300@ | GP100 | 1.620 |
| 949641830100 | O-RING 693,3X5,7 NBR 70@ | GP100 | 0.070 |
| 949641830500 | PIPE@ | GP100 | 0.300 |
| 949641830600 | CHOKE G800-SERIES@ | GP100 | 0.300 |
| 949641830800 | SCREW G800-SERIES 418308@ | GP100 | 0.010 |
| 949656323800 | PROTECTION BUSHING G800-SARJA 563238@ | GP100 | 0.430 |
| 979650167300 | SHIM SHEET 20X30X1@ | GP100 | 0.010 |
| 285502-A | PROTECTION PLATE G158@ | GP100 | 11.000 |
| 285502-B | PROTECTION PLATE G158@ | GP100 | 11.000 |
| 410862-B | EYE BOLT C80B, G158, G258@ | GP100 | 2.700 |
| 495606-A | CNTRL PLATE S=0,4MM G8@ | GP100 | 0.028 |
| 495606-B | CNTRL PLATE S=1,0MM G8@ | GP100 | 0.070 |
| MM0209335 | OIL HOSE 5000 MM | GP100 | 8.300 |
| MM0218708 | SHAFT SEAL DIN3760-AS110X140X12-FKM | GP100 | 0.070 |
| MM0221023 | HYDR PUMP MHP30A294*BEMP1030@ | GP100 | 15.000 |
| MM0230953 | O-RING OR2501700, 17.00X2.50, NBR90@ | GP100 | 0.001 |
| MM0233747 | SHAFT SEAL 402-2883-107@ | GP100 | 0.030 |
| MM0242071 | CONVERSION ADAPTER 04008000@ | GP100 | 0.100 |
| MM0247042 | DIRECTIONAL VALVE DTDA-MCN-223@ | GP100 | 0.600 |
| MM0247048 | COIL 770-223 (230VAC)@ | GP100 | 0.400 |
| MM0250978 | PUMP PLP10.2D0-81E1-LBB/BA-N-ELFS, 00372 | GP100 | 1.500 |
| MM0251855 | PUMP | GP100 | 0.000 |
| MM0253396 | COOLER GP100/S & GP11 | GP100 | 33.000 |
| MM0263960 | FRAME TMZ002 | GP100 | 0.330 |
| MM0289218 | CLAMP FSTNR SP2-D 218/18 PPH GD-AS@ | HP3 | 0.200 |
| MM0309236 | MANTLE F/MF/M/C OS | GP100 | 262.740 |
| MM0314799 | FEED HOPPER | GP100 | 310.000 |
| MM0314800 | FEED HOPPER ASSEMBLY GP100 | GP100 | 310.000 |
| MM0331592 | ELCTRCL CABINET GP100/S 90KW@ | GP100 | 260.000 |
| N02106121 | HOSE FUEL-TEK, 2410BC063@ | GP100 | 1.750 |
| N02123132 | BALL VALVE 100020D R1/2″ 500 BAR | GP100 | 0.665 |
| N02125229 | FLOAT SW LM2CTA450@ | GP100 | 0.500 |
| N02701020 | O-RING OR2502000, 20.00X2.50@ | GP100 | 0.001 |
| N11810031 | UPR FRAME CASTING GP100 EN 10293:1997 G2 | GP100 | 1,513.500 |
| N11950658 | CONCAVE C@ | GP100 | 356.000 |
| ZX11144277 | LOW FRAME GP100/GP100S | GP100 | 1,790.000 |
| ZX11192269 | HOSE LOS5-4KK31,5X4500 | GP100 | 15.500 |
| ZX11192270 | HOSE LOS5-2UU16X4500 | GP100 | 2.800 |
| ZX11192531 | HOSE LOS5-1AA25X7500 | GP100 | 7.800 |
| ZX11192532 | HOSE LOS5-4KU31.5X7500 | GP100 | 9.500 |
| ZX11202686 | AMPMETER DP3-A300/5 | GP100 | 0.000 |
| ZX11214688 | MOTOR Y2-280M-4/90KW/380V,HIGH ALTITUDE | GP100 | 0.000 |
| ZX93000045 | ELECTRICAL CABINET 90KW | GP100 | 0.000 |
| Part Number | Description | Crusher Type | Weight(KG) |
| 801504 | HYDR HOSE 5771-28-16/SAE100R1T-16/57H3- | GP100S | 0.010 |
| 916187 | MAIN SHAFT ASSY GP100S | GP100S | 1,272.000 |
| 928586 | TRANSPORT RACK GP100 | GP100S | 170.000 |
| 933744 | MEASURING TOOL GP100S G208&G258 | GP100S | 7.000 |
| 933910 | SUB-FRAME ASSEMBLY GP100/GP100S | GP100S | 677.100 |
| 946558 | CYL BUSHING GP100S | GP100S | 58.790 |
| 952429 | SLIP RING GP100S | GP100S | 105.000 |
| 403402104900 | O-RING SMS1586-34.20X3.00-NBR90 | GP100S | 0.050 |
| 404203730000 | STUD DIN938-M36X90-8.8 | GP100S | 0.890 |
| 404508393000 | HOSE LOS5-4KU31,5X2300 | GP100S | 7.900 |
| 406303279949 | V-BELT PULLEY SPB 560/6 | GP100S | 46.200 |
| 704104080000 | SCREW RET ISO4027-M8X10-45H | GP100S | 0.003 |
| 704505169393 | HOSE LOS5-1AA25X4600 | GP100S | 4.800 |
| 704508393090 | HOSE LOS5-4KU31.5X5500 | GP100S | 7.000 |
| 814317177900 | MANTLE M/C | GP100S | 414.790 |
| 814328546200 | CONCAVE LOWER GP100S M 0861-512 | GP100S | 394.860 |
| 814328546300 | CONCAVE UPPER M | GP100S | 339.860 |

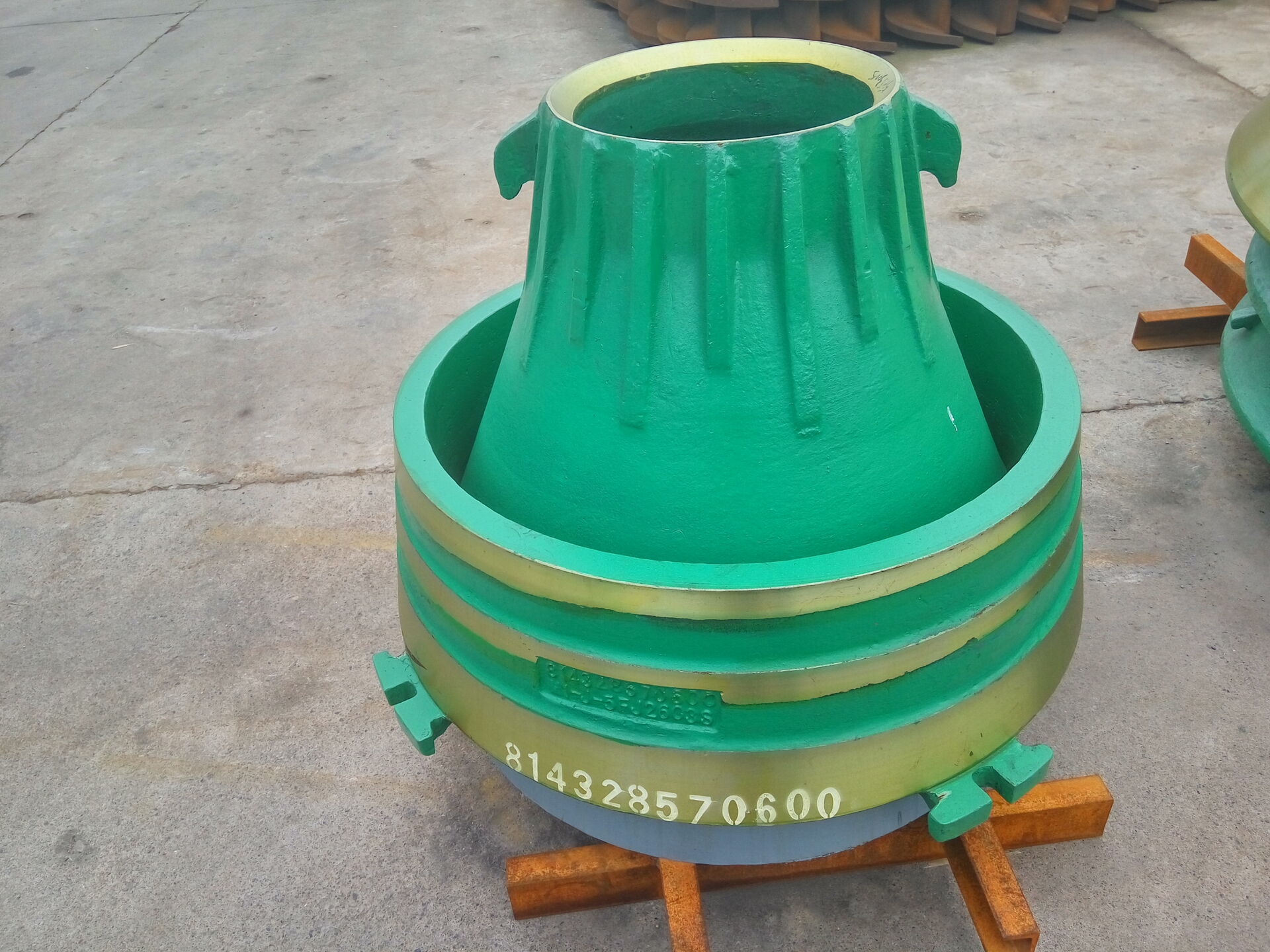

| 814328570600 | CONCAVE LOWER GP100S C 0861-512 | GP100S | 333.610 |
| 814329234600 | CONCAVE UPR C | GP100S | 208.060 |
| 949617145500 | BRNG BUSHING E25 G258-SARJA 171455 | GP100S | 50.000 |
| 949617145600 | BRNG BUSHING E20 G258-SARJA 171456 | GP100S | 50.000 |
| 949617145700 | BRNG BUSHING E16 G258-SARJA 171457 | GP100S | 50.000 |
| 949628504400 | INTERMEDIATE FRAME GP100S | GP100S | 952.000 |
| 949628504600 | FRAME UPR GP100S | GP100S | 690.000 |
| 949628504900 | SLIDE RING GP100S | GP100S | 30.000 |
| 949628506000 | G-CONE SLIP RING G258-SARJA 285060 | GP100S | 102.000 |
| 949631229200 | MAIN SHAFT ASSY SPARE PART VERSION GP10 | GP100S | 1,236.000 |
| 949638684101 | PROTECTION PLATE G258-SERIES 386841-1 | GP100S | 28.000 |
| 949638684102 | PROTECTION PLATE G258-SERIES 386841-2 | GP100S | 28.000 |
| 949641826000 | SEAL G258-SERIES 418260 | GP100S | 5.000 |
| 949641827400 | PROTECTION BUSHING G258-SARJA 418274 | GP100S | 16.000 |
| 949641827600 | PROTECTION PLATE G800-SERIES 418276 | GP100S | 19.000 |
| 949641830700 | SCREW M24X315 G258-SERIES 418307 | GP100S | 1.440 |
| 210824-B | HYDRAULIC HOSES G258,G208 | GP100S | 0.000 |
| MM0243918 | COVER GP100S ASTM A148 Grade 150-135 | GP100S | 65.150 |
| MM0247067 | DIRECTIONAL VALVE 230VAC | GP100S | 0.930 |
| MM0253345 | COOLER MSRE-226 | GP100S | 35.000 |
| MM0289218 | CLAMP FSTNR SP2-D 218/18 PPH GD-AS | HP3 | 0.200 |
| MM0310916 | TIMER XBKH70000002M,230VAC,50HZ,0.7V | GP100S | 0.180 |
| MM0311075 | AMPMETER DP3-A, AC300/5, 220VAC, 08801 | GP100S | 0.405 |
| MM0327647 | THROTTLE VALVE STB0600 | GP100S | 0.400 |
| N02701369 | O-RING 355.00X3.00-NBR70, 80643302500 | GP100S | 0.020 |
| N05256611 | RELAY CAD 32P7 | GP100S | 0.580 |
| ZX93000202 | GP100S CONE CRUSHER | GP100S | 0.000 |
| 801504 | HYDR HOSE 5771-28-16/SAE100R1T-16/57H3- | GP100S | 0.010 |
| 916187 | MAIN SHAFT ASSY GP100S | GP100S | 1,272.000 |
| 928586 | TRANSPORT RACK GP100 | GP100S | 170.000 |
| 933744 | MEASURING TOOL GP100S G208&G258 | GP100S | 7.000 |
| 933910 | SUB-FRAME ASSEMBLY GP100/GP100S | GP100S | 677.100 |
| 946558 | CYL BUSHING GP100S | GP100S | 58.790 |
| 952429 | SLIP RING GP100S | GP100S | 105.000 |
| 403402104900 | O-RING SMS1586-34.20X3.00-NBR90 | GP100S | 0.050 |
| 404203730000 | STUD DIN938-M36X90-8.8 | GP100S | 0.890 |
| 404508393000 | HOSE LOS5-4KU31,5X2300 | GP100S | 7.900 |
| 406303279949 | V-BELT PULLEY SPB 560/6 | GP100S | 46.200 |
| 704104080000 | SCREW RET ISO4027-M8X10-45H | GP100S | 0.003 |
| 704505169393 | HOSE LOS5-1AA25X4600 | GP100S | 4.800 |
| 704508393090 | HOSE LOS5-4KU31.5X5500 | GP100S | 7.000 |
| 814317177900 | MANTLE M/C | GP100S | 414.790 |
| 814328546200 | CONCAVE LOWER GP100S M 0861-512 | GP100S | 394.860 |
| 814328546300 | CONCAVE UPPER M | GP100S | 339.860 |
| 814328570600 | CONCAVE LOWER GP100S C 0861-512 | GP100S | 333.610 |
| 814329234600 | CONCAVE UPR C | GP100S | 208.060 |
| 949617145500 | BRNG BUSHING E25 G258-SARJA 171455 | GP100S | 50.000 |
| 949617145600 | BRNG BUSHING E20 G258-SARJA 171456 | GP100S | 50.000 |
| 949617145700 | BRNG BUSHING E16 G258-SARJA 171457 | GP100S | 50.000 |
| 949628504400 | INTERMEDIATE FRAME GP100S | GP100S | 952.000 |
| 949628504600 | FRAME UPR GP100S | GP100S | 690.000 |
| 949628504900 | SLIDE RING GP100S | GP100S | 30.000 |
| 949628506000 | G-CONE SLIP RING G258-SARJA 285060 | GP100S | 102.000 |
| 949631229200 | MAIN SHAFT ASSY SPARE PART VERSION GP10 | GP100S | 1,236.000 |
| 949638684101 | PROTECTION PLATE G258-SERIES 386841-1 | GP100S | 28.000 |
| 949638684102 | PROTECTION PLATE G258-SERIES 386841-2 | GP100S | 28.000 |
| 949641826000 | SEAL G258-SERIES 418260 | GP100S | 5.000 |
| 949641827400 | PROTECTION BUSHING G258-SARJA 418274 | GP100S | 16.000 |
| 949641827600 | PROTECTION PLATE G800-SERIES 418276 | GP100S | 19.000 |
| 949641830700 | SCREW M24X315 G258-SERIES 418307 | GP100S | 1.440 |
| 210824-B | HYDRAULIC HOSES G258,G208 | GP100S | 0.000 |
| MM0243918 | COVER GP100S ASTM A148 Grade 150-135 | GP100S | 65.150 |
| MM0247067 | DIRECTIONAL VALVE 230VAC | GP100S | 0.930 |
| MM0253345 | COOLER MSRE-226 | GP100S | 35.000 |
| MM0289218 | CLAMP FSTNR SP2-D 218/18 PPH GD-AS | GP100S | 0.200 |
| MM0310916 | TIMER XBKH70000002M,230VAC,50HZ,0.7V | GP100S | 0.180 |
| MM0311075 | AMPMETER DP3-A, AC300/5, 220VAC, 08801 | GP100S | 0.405 |
| MM0327647 | THROTTLE VALVE STB0600 | GP100S | 0.400 |
| N02701369 | O-RING 355.00X3.00-NBR70, 80643302500 | GP100S | 0.020 |
| N05256611 | RELAY CAD 32P7 | GP100S | 0.580 |
| ZX93000202 | GP100S CONE CRUSHER | GP100S | 0.010 |
Message
Products Recommended
