Metso GP200/GP200S Wear Parts

‹

›

‹

  • Metso GP200/GP200S Wear Parts
  • Metso GP200/GP200S Wear Parts
  • Metso GP200/GP200S Wear Parts
  • Metso GP200/GP200S Wear Parts
  • Metso GP200/GP200S Wear Parts

›

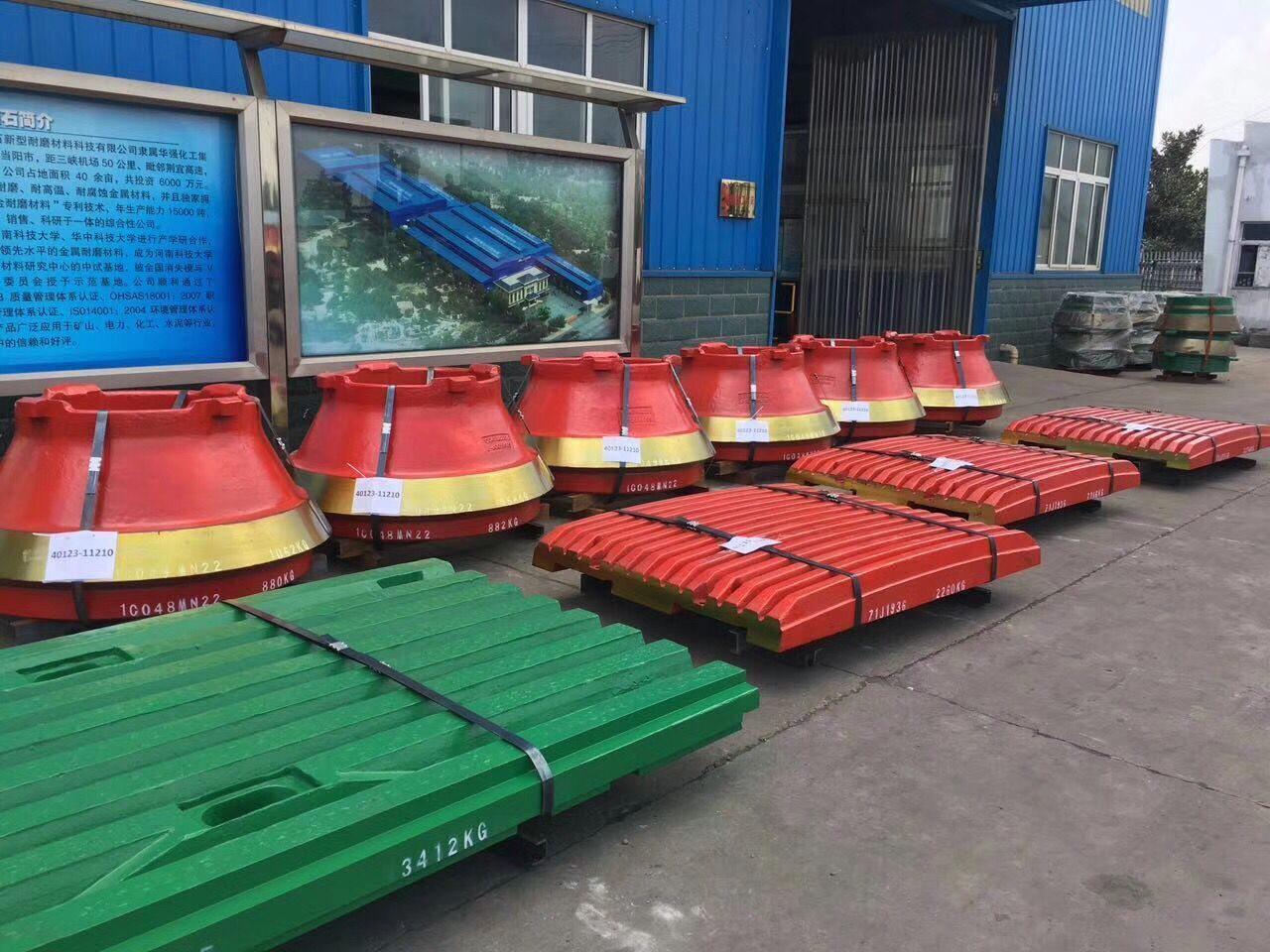

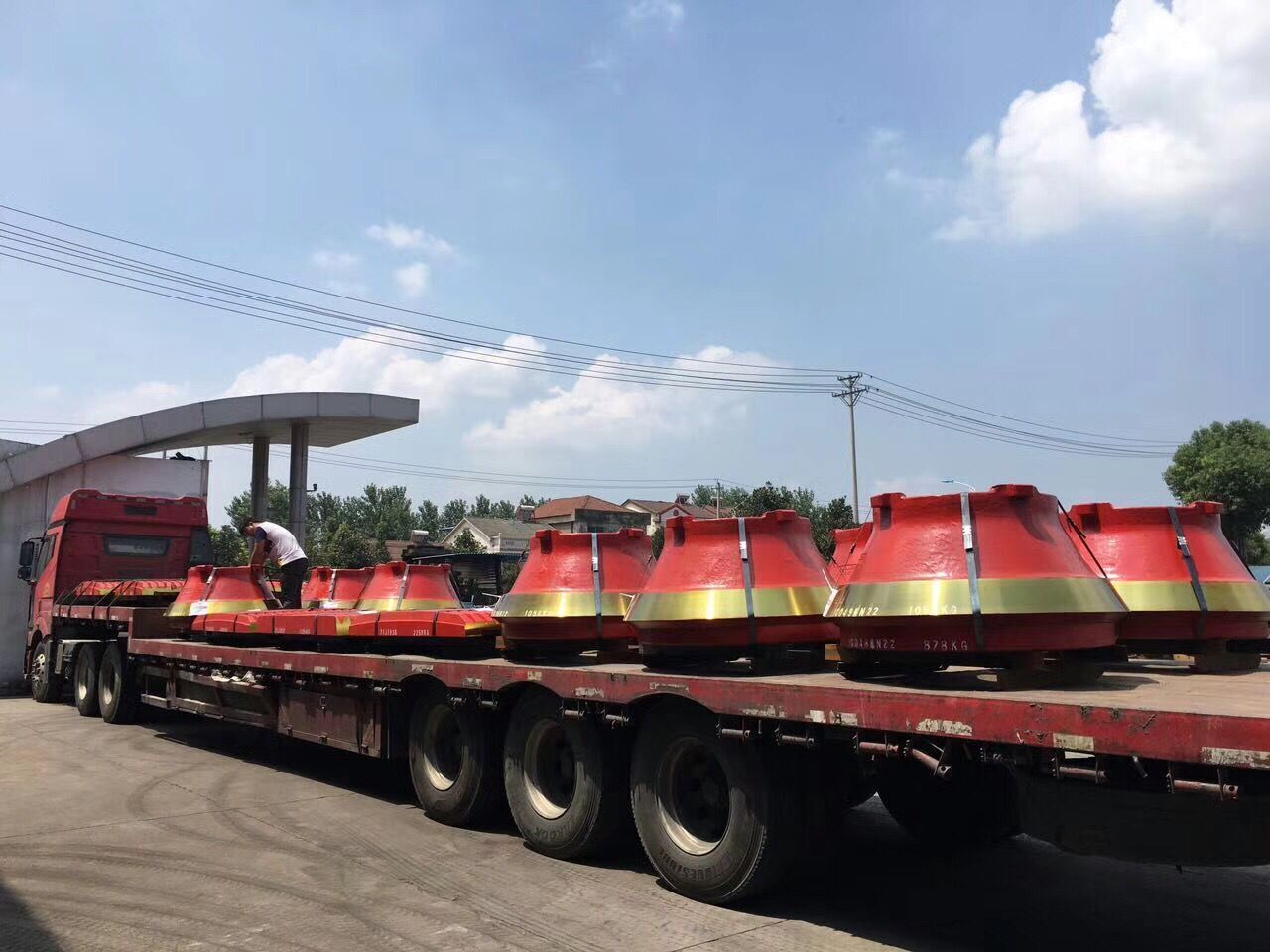

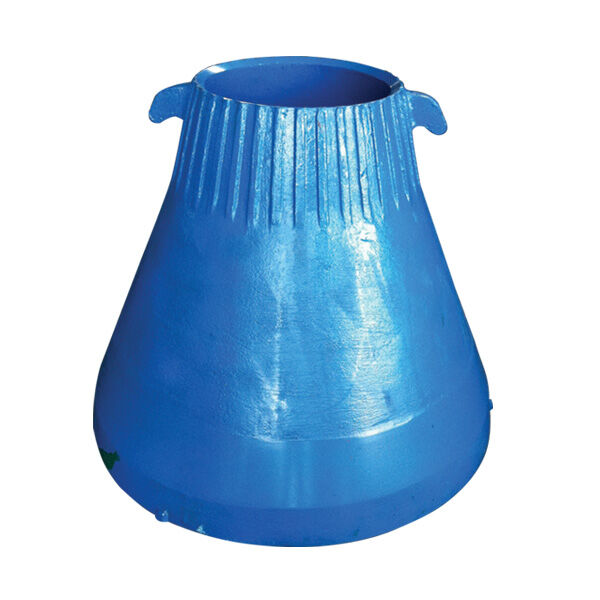

Bowl Liner & Mantle are the mainly wear-resistant parts for metso GP200/GP200S cone crusher.WHITE LAI Offers the Metso® Bowl Liner & Mantle，Perfect alternative to Metso original accessories.

WHITE LAI Bowl Liner & Mantle is manufactured with super high manganese steel, therefore it has a service life 50~100% longer than those made of traditional high manganese steel.  The special processing techniques ensure that our Bowl Liner & Mantle has leading performance:

1)Using cold processing hardening technology, the hardness is improved.

2)Water toughening technology to avoid making the performance poor during the process of natural phase change.


Part NumberDescriptionCrusher TypeWeight
576159SHIM PLATESGP2001.600
583089STRAINER GP-LUB UNITGP2007.000
583099HYDR POWER UNIT GP-LUB UNITGP20054.090
583102TEMP SENSOR GP-LUB UNITGP2002.000
908921BRNG GP200/SGP2001.700
909064O-RING GP200/200SGP2000.040
909065O-RING GP200/200SGP2000.060
909066O-RING GP200/200SGP2000.060
909067O-RING GP200/200SGP2000.090
909070O-RING GP200/200SGP2000.060
912389COVERING G3310GP20034.800
932594PROTECTION BUSHINGGP20029.800
932867NUT NUT Tr270x12-8HGP20043.720
932880PIPEGP2000.080
932886PROTECTION PLATEGP20012.700
932952SLIDE RINGGP20025.200
932953SEALGP2002.530
932975SPLASH GRD GP200, POLYAMID PA6GP2001.002
933335SPACER RINGGP2001.900
933615ECCENTRIC BUSHING GP200 18/25GP20072.250
933638TOP BRNG GP200 18/25GP20032.080
934265CONCAVE PROTECTION GP200 FGP20052.500
935879PRESSURE SEALINGGP20045.000
941535THRUST BRNG GP200SGP20047.500
942951FRAME BUSHINGGP20050.020
942969O-RING GP200/200SGP2000.850
944415LOW FRAME GP200/SGP2002,732.470
945072CNTRSHFT ASSY GP200/SGP200166.600
951756HOSEGP2000.250
7001624006WASHER L-6-ZIN-NFE27-611GP2000.003
7002046007ELBOW ISO49-A4-1 1/4-ZN-AGP2000.400
7002415053ADAPTER GG106-NP20-24GP2000.420
7002422120EQUAL TEE G203102-20-20SGP2000.712
7002480756THROTTLE STC12/OD-21-01-03-05GP2000.310
404107470030BOLT HEX ISO4014-M36X170-8.8-UNPLTDGP2001.720
704404205200CLAMP DIN3017-SA77-95-W1GP2000.050
705501260605V-BELT SET ISO4184-8XSPC 2800GP2008.480
706300240300GUIDING RING PO-55-25150-5400-AGP2000.150
706300910002PISTON SEAL UN540X500X20 PU 90 SHGP2000.400
949690808328DRIVE GEAR PAIR G3310 908083 JA 908085GP200106.000
MM0215905SHAFT SEAL DIN3760-AS115X140X12-FKMGP2000.070
MM0223580POWER SOURCE QUINT-PS-3X400-500AC/24DC/GP2001.400
MM0272762ARM GRD GP200/SGP20040.220
MM0301491BRNG GP200/GP200SGP20010.730
MM0315432CNTRSHFT ASSY GP200/SGP200166.050
MM0524454BRNG GP200/SGP2009.780
MM0531018BRNG GP200/SGP2001.600
N01521002CAP SCRW HEXSCKTHD DIN7984-M10X25-8.8-UNGP2000.019
N02125056THERMOSTAT KPS 79 060L312166GP2000.882
N02125794HTR 59484 6000W/480V 2W/CM2GP2006.000
N02125883MSR ADAPTER 1-906-29-11-010, R1/4GP2000.100
N02149024COUPLING HOUSING TH2-101AGP2000.500
N02152933HYDR PUMP P197086KAZA20-32GP20019.000
N02152936HYDR PUMP AP200/11-D-218GP2002.330
N02154075COOLER T6.1626.063.X009GP20029.500
N02154752PROTECTION PIPE OD15X75MM, 060L3262GP2000.050
N02445012MANOMETER 6308 PBL 060GP2000.250
N02445013MANOMETER 6305 RL 025GP2000.250
N02445014MANOMETER VALVE HB1-PAGP2000.350
N02445071PRESSURE RELIEF VALVE VSP-150 04.12.04-0GP2000.280
N02445174CARTRIDGE VALVE OD.15.05.21-37-00 VEI-8AGP2000.350
N02445183CRTRDG VALVE VU-C-12 OD.42.01.00.05-01GP2000.320
N02445187VALVE BLOCK OFF15912NE0000GP2004.100
N02445315SEAL USIT-4 R1/4″GP2000.005
N02445792FILTER CRTRDG RH 150 MS 1GP2001.000
N02445793FILTER CRTRDG CH 302 FV 1 1GP2000.330
N02445810CLOGGING IND IND.008.0075.2 2BAR 30CGP2000.080
N02445980FILTER ASSY SPM302FV1CB503XXGP2002.200
N02445983FILTER ELEMENT CS 10 ANGP2001.200
N02480709COIL OD.02.11-01-30-OC, 24VDCGP2000.180
N02480817PRESSURE SW 060-3104, KPS33, 0.6BAR / 0GP2001.000
N02701132O-RING 69.85X3.53-NBR70, 80641195000GP2000.005
N03460525COUPLING AK2-PP-65 / K-65 / AK28-MP-65GP2000.700
N03460609SPACER K-90GP2000.060
N05227008ELECTRIC PIN, MALE MVSTBR2,5/4-ST-5,08GP2000.001
N05256691CNNCTN ITEM GV2-AF3GP2000.016
N05256975FUSE BASE ST 4-FSI/C, 3036372GP2000.021
N05428751SQUIRR CAGE MOTOR K21R 100L4 2.2KW/1500GP20023.500
N05428752SQUIRR CAGE MOTOR K21R 80G8-4L 0.18/0.7GP20012.000
N11933947MANTLE F/M/ECGP200479.270
N11933948CONCAVE SPECIAL FGP200481.780
N11933949CONCAVE MGP200653.510
N11934264INTERMEDIATE CONE GP200 F & M, 20MN5GP200206.000
N11942003MANTLE EFGP200466.400
N11942004CONCAVE EFGP200428.150
N11944214CONCAVE FGP200568.990
N11944215CONCAVE ECGP200619.430
N11951220CONCAVE MCGP200600.770
N44450224HYDR HOSE 5723-20-16/SAE100R2T-16/5705-1GP2009.000
N44460458HYDR HOSE JF-12/EN857-2SC-12/45JF-12/L88GP2001.000
N44460461HYDR HOSE JF-20/EN853-1SN-20/45JF-20/L45GP2001.200
N44460464HYDR HOSE JF-20/EN853-1SN-20/JF-20/L720GP2001.500
N44460963HOSE JF-06/EN857-2SC-04/JF-06/L350GP2000.230
N86101539PIPEGP2000.800
N86101540PIPEGP2000.820


Part NumberDescriptionCrusher TypeWeight
285226COMPRESSOR UNIT G-SERIESGP200S45.000
418559SEAL G-SERIESGP200S0.100
583101COOLER ASSY GP-LUB UNIT – GP200/SGP200S61.490
907485INTERMEDIATE FRAME GP200SGP200S1,410.420
907733FRAME UPR GP200SGP200S868.000
908527ECCENTRIC BUSHING GP200S 18/25/32GP200S71.840
908603TOP BEARING GP200S 18/25/32GP200S33.640
908632PROTECTION BUSHING G3310908160GP200S32.000
908674NUT TR270X12-8H  GP200SGP200S28.230
908862PROTECTION PLATEGP200S13.500
915371SEAL G3310 ER.915371GP200S2.430
915449SLIDE RING G3310 ER.915449GP200S25.800
916173MAIN SHAFT ASSY GP200SGP200S1,950.000
916174FRAME ASSY UPR GP200SGP200S2,468.550
923946BRNG GP200SGP200S2.000
923951SHIM SHEET G3310GP200S0.070
932814SLIP RING EN 1563:1997 GJS-700-2GP200S160.610
936406MAIN SHAFT ASSY GP200S SPARE PART VERSIGP200S1,915.080
937405SEAL NBR 65 SHA-301/239X23GP200S0.570
814390727700MANTLE C/ECGP200S578.000
814390727800CONCAVE GP200SEC  0861-512GP200S436.340
814390727900CONCAVE UPPER ECGP200S239.540
814391704400CONCAVE GP200S C  0861-512GP200S465.430
814391704500CONCAVE UPPER CGP200S307.590
MM0232081HYDR HOSE 90JF-20/EN853-1SN-20/90JF-20/LGP200S1.300
MM0232284HYDR HOSE JF-20/EN853-1SN-20/90JF-20/L53GP200S1.200
MM0239369ECCENTRIC SHAFT GP200SGP200S195.290
MM0310133MAIN SHAFT ASSY GP200SGP200S1,917.760
N02445052PRSSR REL VALVE VSD-350 04.15.04-03-99-GP200S1.480
